  CONNECTORS


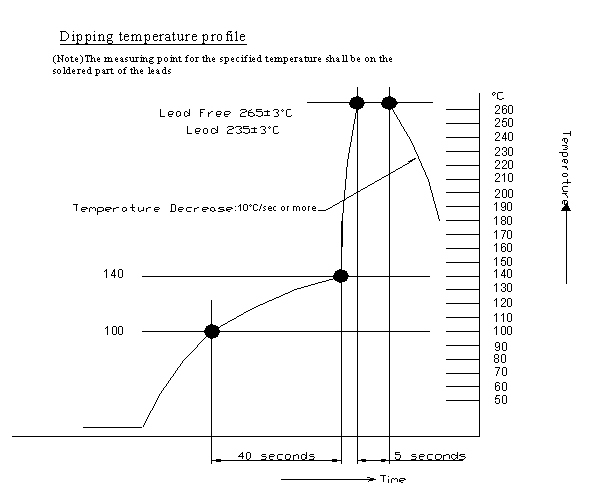

OBP618          10 Base-T   100 Base-T    1000 Base-T

                                        with LED for PoE

1.        MECHANIC DIMENSIONS

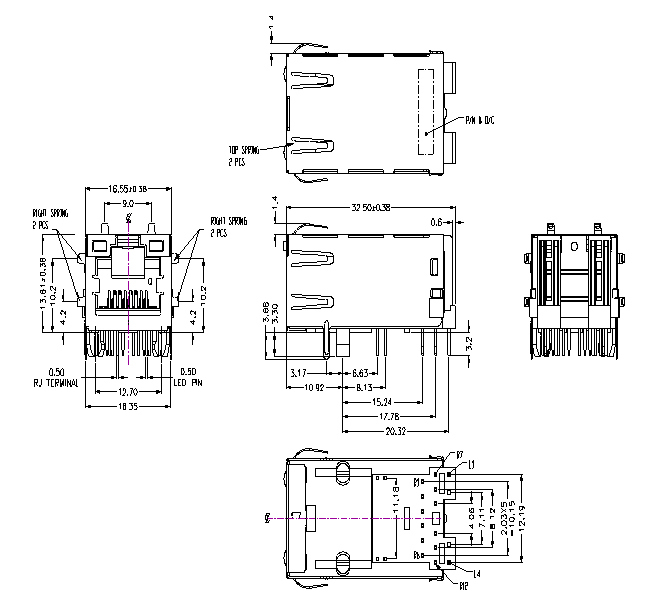

1.1.       Dimensions

General Tolerance:    .X : ±0.25
                              .XX :
±0.13

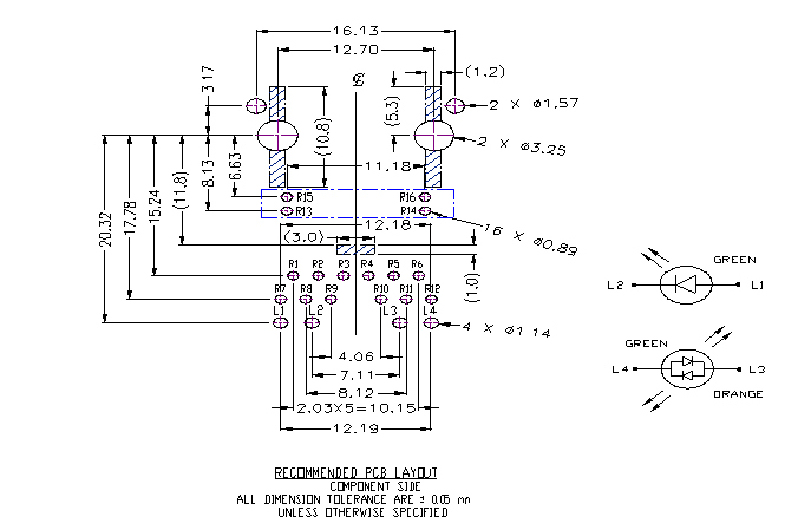

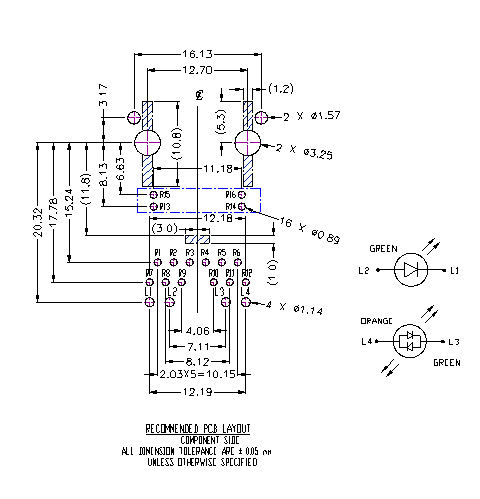

1.2.       PCB Layout

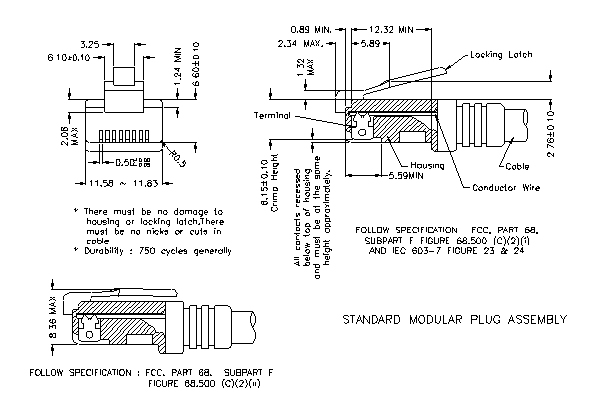

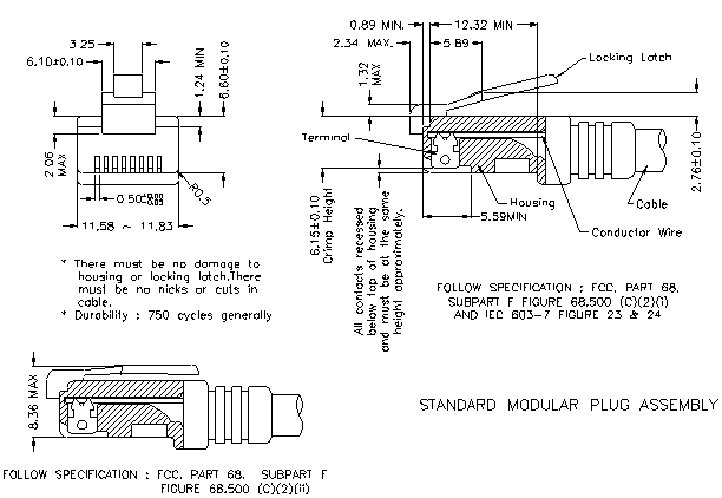

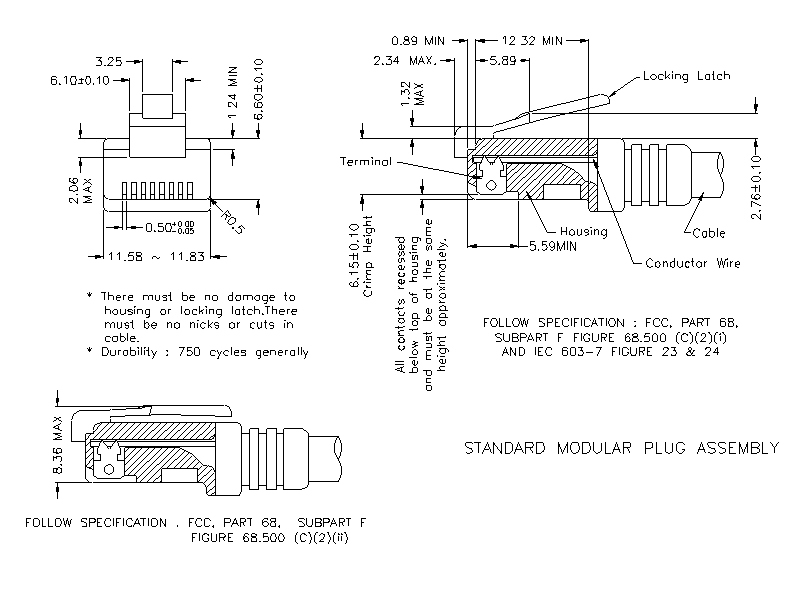

1.3.       RJ PLUG SPECIFICATION



2.      REQUIREMENTS

2.1  Design and Construction
Product shall be of design, construction and physical dimensions as specified.



2.2    Materials

2.2.1        Terminal Parts :

2.2.1.1  RJ Terminal : Phosphor Bronze , Thickness=0.30mm
Finish : ( a ) Contact Area : 30m
min. Gold
       ( b ) Solder tail Area : 100m” min. Tin
       ( c ) Under plating : 50~100m” Nickel over all

2.2.1.2  Input Terminal : Brass , Thickness=0.35mm
Finish : 100
m” min. Tin over 50~100m” min. Nickel

2.2.1.3  Module Terminal : Brass , Thickness=0.30mm
Finish : 100
m” min. Tin over 50~100m” min. Nickel



2.2.2        Plastic Parts :

2.2.2.1  Housing : High temp. Thermoplastic, Black
Flame Class : UL94 V-0

2.2.2.2  Coil Case : High temp. Thermoplastic, Black
Flame Class : UL94 V-0

2.2.2.3  Cover : Thermoplastic , PBT , Black
Flame Class : UL94 V-0



2.2.3        Shell Parts :

2.2.3.1  Shell : Stainless, Thickness=0.20mm
Grounding Leg : Pre-soldering



2.3  Operating and Storage Temperature

2.3.1        Operating Temperature : 0 TO +70

2.3.2        Storage Temperature : -40 TO +85



2.4  RJ 45 specifications:

2.4.1        Insulation Resistance: 500MΩMin

2.4.2        Dielectric Withstanding Voltage: 1000VAC Min



2.5  Performance and Test Description
Product is designed to meet electrical, mechanical and environmental performance requirements as specified.

     All tests are performed at ambient environmental conditions per MIL-STD-1344A and EIA-364 unless

     otherwise specified.



2.6  Packaging and Packing
All parts shall be packaged and packed to protect against physical damage, corrosion and deterioration during

      shipment and storage.



3.        ELECTRICAL CHARACTERISTICS

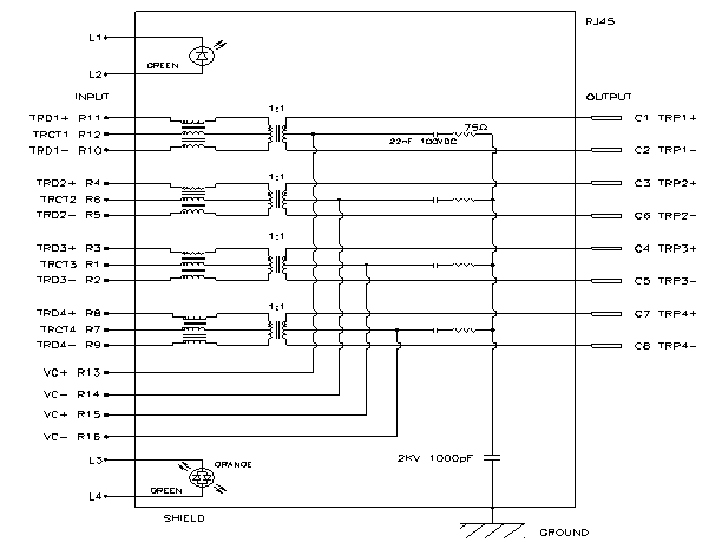

3.1.       SCHEMATIC



3.2       Transmitter filter & Receiver filter
Type : Balance low pass 100Ω impedance
Insertion loss : 1~100 MHz –1.0dB MAX.
Return loss :  1~30 MHz –18dB MIN. load 100Ω
            30~60 MHz –16dB MIN. load 100Ω
            60~80 MHz –12dB MIN. load 100Ω

            80~100 MHz –10dB MIN. load 100Ω



3.3 Common Mode Rejection
@ 1~100 MHz –30dB MIN.



3.4 Cross Talk
@ 1~100 MHz –30dB MIN

3.5 INDUCTANCE @ 100KHz, 0.1V, 8mA DC BIAS

     Input(R11-R10), Input(R4-R5), Input(R3-R2), Input(R8-R9): 350mH MIN. ( @ 100KHz, 0.1V, 8mA DC BIAS)

         Input(R11-R10), Input(R4-R5), Input(R3-R2), Input(R8-R9): 350mH MIN. ( @ 100KHz, 0.1V, 24mA DC BIAS)

3.6 HiPot TEST
Input to Output : 1500VAC, 60sec or 2250VDC, 60sec



3.7  Balanced DC line current

720mA MAX @57VDC continuous

1.2A MAX @57VDC for 200milliseconds


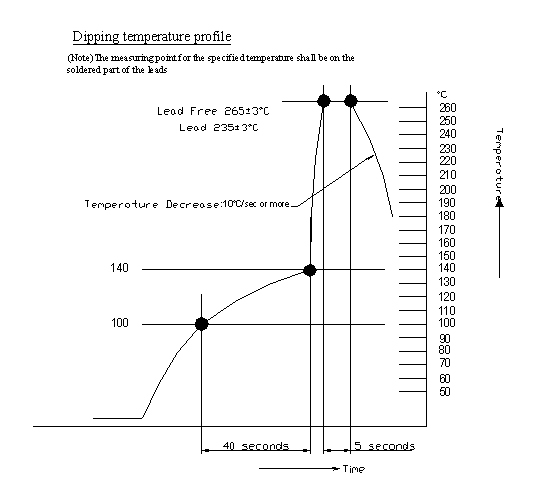

OBP640      10 Base-T   100 Base-T    1000 Base-T

                                          with LED for PoE +

1.        MECHANIC DIMENSIONS

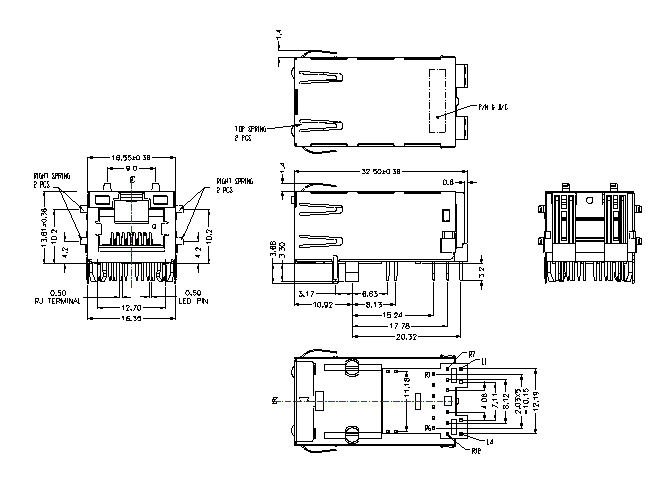

1.1.       Dimensions

  General Tolerance :   .X : ±0.25
                                 .XX :
±0.13

1.2.       PCB Layout

1.3      RJ PLUG SPECIFICATION



2.      REQUIREMENTS



2.1  Design and Construction:
Product shall be of design, construction and physical dimensions as specified



2.2    Materials

2.2.1        Terminal Parts :

2.2.1.1  RJ Terminal : Phosphor Bronze , Thickness=0.30mm
Finish : ( a ) Contact Area : 30m
min. Gold
             ( b ) Solder tail Area : 100m” min. Tin
             ( c ) Under plating : 50~100m” Nickel over all

2.2.1.2  Input Terminal : Brass , Thickness=0.35mm
Finish : 100
m” min. Tin over 50~100m” min. Nickel

2.2.1.3  Module Terminal : Brass , Thickness=0.30mm
Finish : 100
m” min. Tin over 50~100m” min. Nickel

2.2.2        Plastic Parts :

2.2.2.1  Housing : High temp. Thermoplastic, Black
Flame Class : UL94 V-0

2.2.2.2  Coil Case : High temp. Thermoplastic, Black
Flame Class : UL94 V-0

2.2.2.3  Cover : Thermoplastic , PBT , Black
Flame Class : UL94 V-0

2.2.3        Shell Parts :

2.2.3.1  Shell : Stainless, Thickness=0.20mm
Grounding Leg : Pre-soldering



2.3  Operating and Storage Temperature

2.3.1        Operating Temperature : 0 TO +70

2.3.2        Storage Temperature : -40 TO +85



2.4  RJ45 specifications:

2.4.1        Insulation Resistance: 500MΩMin

2.4.2        Dielectric Withstanding Voltage: 1000VAC Min



2.5  Performance and Test Description
Product is designed to meet electrical, mechanical and environmental performance requirements as specified.

     All tests are performed at ambient environmental conditions per MIL-STD-1344A and EIA-364 unless otherwise

     specified.



2.6  Packaging and Packing
All parts shall be packaged and packed to protect against physical damage, corrosion and deterioration during

      shipment and storage.



3.        ELECTRICAL CHARACTERISTICS

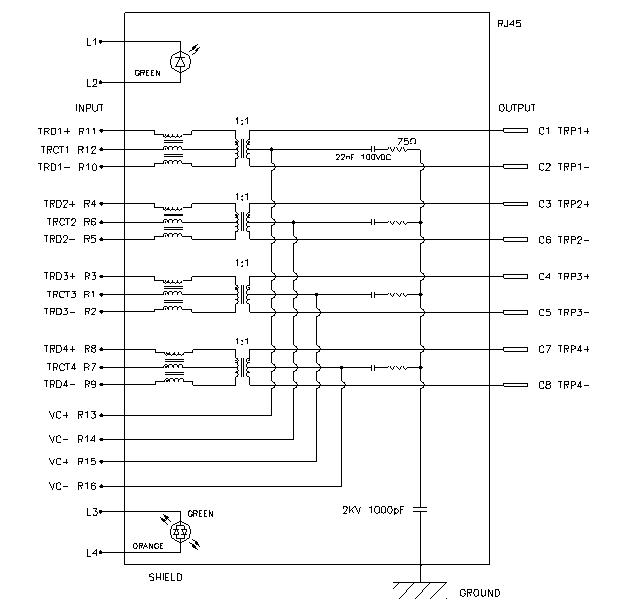

3.1.       SCHEMATIC

3.2.       Transmitter filter & Receiver filter
Type : Balance low pass 100Ω impedance
Insertion loss : 1~100 MHz –1.0dB MAX.
Return loss :  1~30 MHz –18dB MIN. load 100Ω
            30~60 MHz –16dB MIN. load 100Ω
            60~80 MHz –12dB MIN. load 100Ω

            80~100 MHz –10dB MIN. load 100Ω



3.3 Common Mode Rejection
@ 1~100 MHz –30dB MIN.



3.4 Cross Talk
@ 1~100 MHz –30dB MIN

3.5 INDUCTANCE @ 100KHz, 0.1V, 8mA DC BIAS

Input(R11-R10), Input(R4-R5), Input(R3-R2), Input(R8-R9): 350mH MIN. ( @ 100KHz, 0.1V, 8mA DC BIAS)

           Input(R11-R10), Input(R4-R5), Input(R3-R2), Input(R8-R9): 350mH MIN. ( @ 100KHz, 0.1V, 24mA DC BIAS)

3.6 HiPot TEST
Input to Output : 1500VAC, 60sec or 2250VDC, 60sec



3.7  Balanced DC line current

720mA MAX @57VDC continuous

1.2A MAX @57VDC for 200milliseconds




OBP650      10 Base-T   100 Base-T    1000 Base-T

                                               RJ-45 for PoE

                      Extended Temperature: -40°C to +85°

1.        MECHANIC DIMENSIONS

1.1.       Dimensions

1.2.       PCB Layout

1.3.       RJ PLUG SPECIFICATION



2.      REQUIREMENTS



2.1  Design and Construction
Product shall be of design, construction and physical dimensions as specified



2.2    Materials

2.2.1        Terminal Parts :

2.2.1.1  RJ Terminal : Phosphor Bronze , Thickness=0.30mm
Finish : ( a ) Contact Area : 30m
min. Gold
       ( b ) Solder tail Area : 100m” min. Tin
       ( c ) Under plating : 50~100m” Nickel over all

2.2.1.2  Input Terminal : Brass , Thickness=0.35mm
Finish : 100
m” min. Tin over 50~100m” min. Nickel

2.2.1.3  Module Terminal : Brass , Thickness=0.30mm
Finish : 100
m” min. Tin over 50~100m” min. Nickel

2.2.2        Plastic Parts :

2.2.2.1  Housing : High temp. Thermoplastic, Black
Flame Class : UL94 V-0

2.2.2.2  Coil Case : High temp. Thermoplastic, Black
Flame Class : UL94 V-0

2.2.2.3  Cover : Thermoplastic , PBT , Black
Flame Class : UL94 V-0

2.2.3        Shell Parts :

2.2.3.1  Shell : Stainless, Thickness=0.20mm
Grounding Leg : Pre-soldering



2.3  Operating and Storage Temperature

2.3.1        Operating Temperature : -40 TO +85

2.3.2        Storage Temperature : -40 TO +85



2.4  RJ45 specifications:

2.4.1        Insulation Resistance: 500MΩMin

2.4.2        Dielectric Withstanding Voltage: 1000VAC Min



2.5  Performance and Test Description
Product is designed to meet electrical, mechanical and environmental performance requirements as specified.

     All tests are performed at ambient environmental conditions per MIL-STD-1344A and EIA-364 unless

     otherwise specified.



2.6  Packaging and Packing
All parts shall be packaged and packed to protect against physical damage, corrosion and deterioration

      during shipment and storage.



3.        ELECTRICAL CHARACTERISTICS

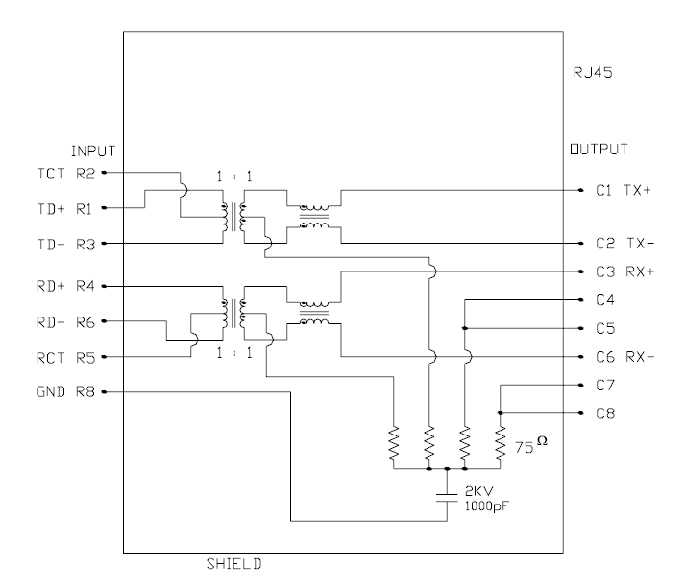

3.1.       SCHEMATIC



3.2       Transmitter filter & Receiver filter
Type : Balance low pass 100Ω impedance
Insertion loss : 1~100 MHz –1.0dB MAX.
Return loss :  1~30 MHz –18dB MIN. load 100Ω
            30~60 MHz –16dB MIN. load 100Ω
            60~80 MHz –12dB MIN. load 100Ω

            80~100 MHz –10dB MIN. load 100Ω



3.3 Common Mode Rejection
@ 1~100 MHz –30dB MIN.



3.4 Cross Talk
@ 1~100 MHz –30dB MIN

3.5 INDUCTANCE @ 100KHz, 0.1V, 8mA DC BIAS
                     Input(R11-R10), Input(R4-R5), Input(R3-R2), Input(R8-R9):
350mH MIN.

3.6 HiPot TEST
Input(R11-R10) to Output(C1-C2) : 1500VAC, 60sec or 2250VDC, 60sec
Input(R4-R5) to Output(C3-C6) : 1500VAC, 60sec or 2250VDC, 60sec

        Input(R3-R2) to Output(C4-C5) : 1500VAC, 60sec or 2250VDC, 60sec
Input(R8-R9) to Output(C7-C8) : 1500VAC, 60sec or 2250VDC, 60sec


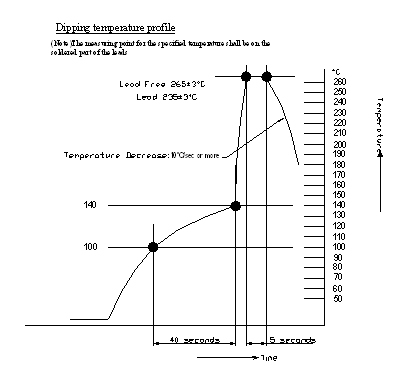

OBP651       10 Base-T   100 Base-T    1000 Base-T

                                               RJ-45 for PoE +

                       Extended Temperature: -40°C to +85°

1.        MECHANIC DIMENSIONS

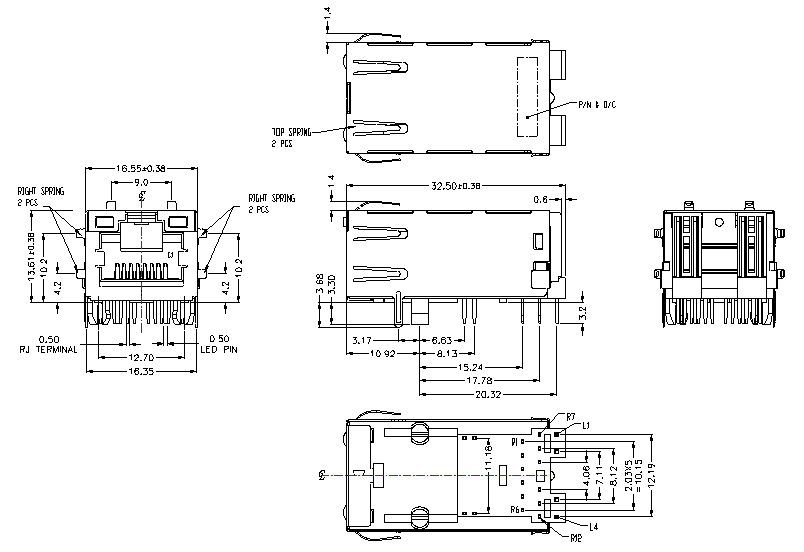

1.1.       Dimensions

General Tolerance:   .X : ±0.25
                            .XX :
±0.13

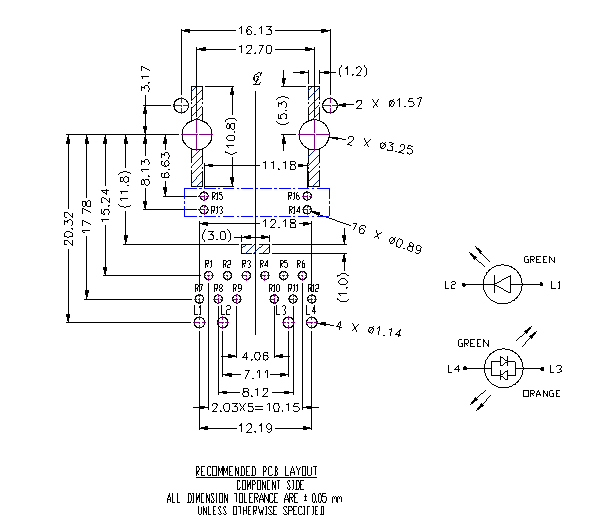

1.2.       PCB Layout



1.3.       RJ PLUG SPECIFICATION



2.      REQUIREMENTS



2.1  Design and Construction
Product shall be of design, construction and physical dimensions as specified



2.2    Materials

2.2.1        Terminal Parts :

2.2.1.1  RJ Terminal : Phosphor Bronze , Thickness=0.30mm
Finish : ( a ) Contact Area : 30m
min. Gold
       ( b ) Solder tail Area : 100m” min. Tin
       ( c ) Under plating : 50~100m” Nickel over all

2.2.1.2  Input Terminal : Brass , Thickness=0.35mm
Finish : 100
m” min. Tin over 50~100m” min. Nickel

2.2.1.3  Module Terminal : Brass , Thickness=0.30mm
Finish : 100
m” min. Tin over 50~100m” min. Nickel



2.2.2        Plastic Parts :

2.2.2.1  Housing : High temp. Thermoplastic, Black
Flame Class : UL94 V-0

2.2.2.2  Coil Case : High temp. Thermoplastic, Black
Flame Class : UL94 V-0

2.2.2.3  Cover : Thermoplastic , PBT , Black
Flame Class : UL94 V-0



2.2.3        Shell Parts :

2.2.3.1  Shell : Stainless, Thickness=0.20mm
Grounding Leg : Pre-soldering



2.3  Operating and Storage Temperature

2.3.1        Operating Temperature : 0 TO +70

2.3.2        Storage Temperature : -40 TO +85



2.4  RJ45 specifications:

2.4.1        Insulation Resistance: 500MΩMin

2.4.2        Dielectric Withstanding Voltage: 1000VAC Min



2.5  Performance and Test Description
Product is designed to meet electrical, mechanical and environmental performance requirements as specified.

     All tests are performed at ambient environmental conditions per MIL-STD-1344A and EIA-364 unless

     otherwise specified.



2.6  Packaging and Packing
All parts shall be packaged and packed to protect against physical damage, corrosion and deterioration

      during shipment and storage.



3.        ELECTRICAL CHARACTERISTICS

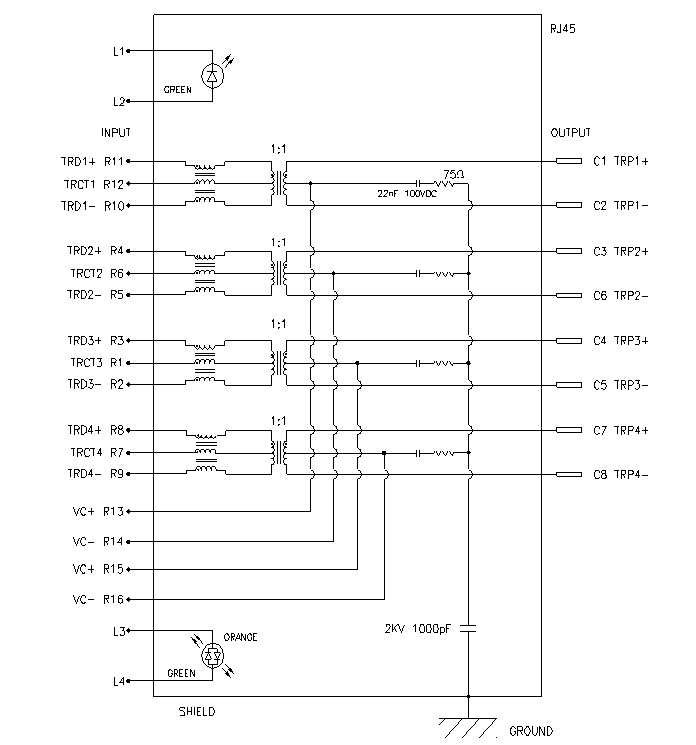

3.1.       SCHEMATIC



3.2.       Transmitter filter & Receiver filter
Type : Balance low pass 100Ω impedance
Insertion loss : 1~100 MHz –1.0dB MAX.
Return loss :  1~30 MHz –18dB MIN. load 100Ω
            30~60 MHz –16dB MIN. load 100Ω
            60~80 MHz –12dB MIN. load 100Ω

            80~100 MHz –10dB MIN. load 100Ω



3.3 Common Mode Rejection
@ 1~100 MHz –30dB MIN.



3.4 Cross Talk
@ 1~100 MHz –30dB MIN

3.5 INDUCTANCE @ 100KHz, 0.1V, 8mA DC BIAS

Input(R11-R10), Input(R4-R5), Input(R3-R2), Input(R8-R9): 350mH MIN. ( @ 100KHz, 0.1V, 8mA DC BIAS)

             Input(R11-R10), Input(R4-R5), Input(R3-R2), Input(R8-R9): 350mH MIN. ( @ 100KHz, 0.1V, 24mA DC BIAS)

3.6 HiPot TEST
Input to Output : 1500VAC, 60sec or 2250VDC, 60sec



3.7  Balanced DC line current

720mA MAX @57VDC continuous

1.2A MAX @57VDC for 200milliseconds




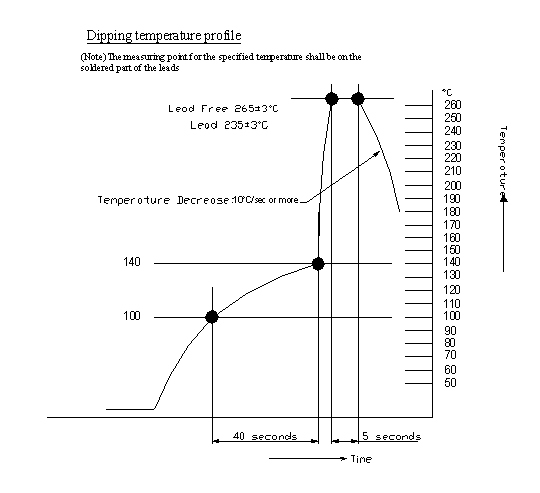

OBP653     Vertical 10 Base-T  w/o LED

                            Vertical 100 Base-T  w/o LED

                 Extended Temperature: -40°C to +85°C

1.        MECHANIC DIMENSIONS

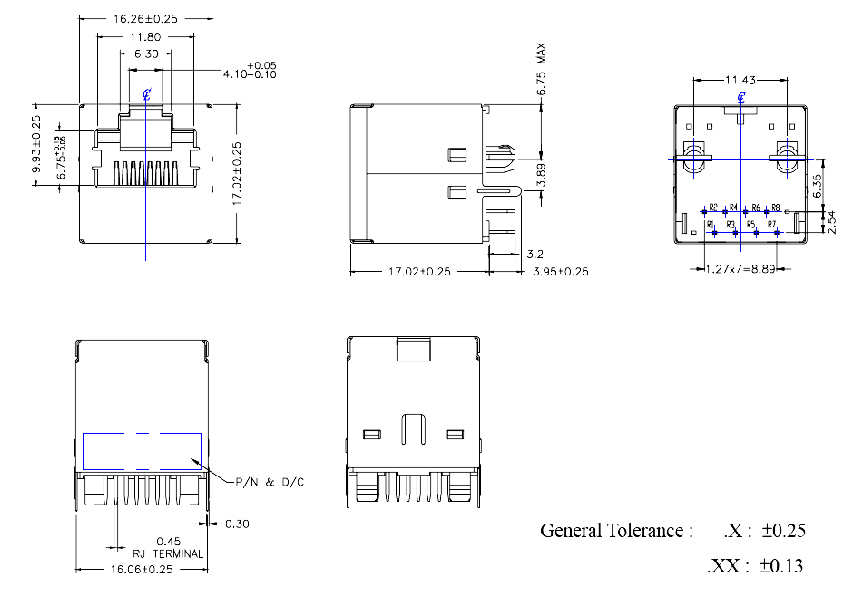

1.1.       Dimensions

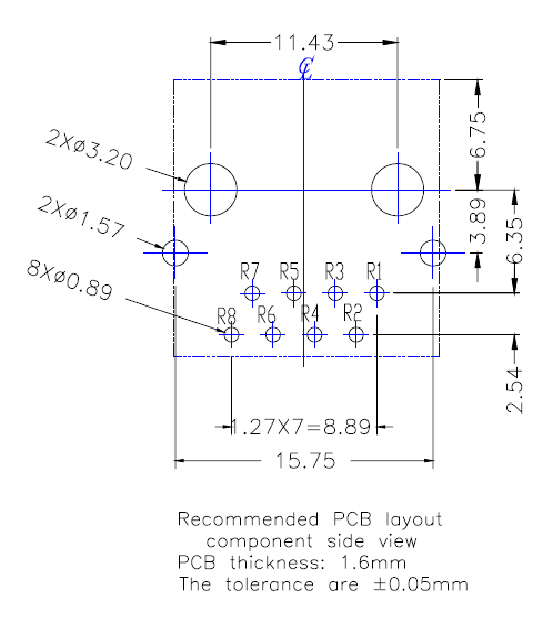

1.2.       PCB Layout





1.3.       RJ PLUG SPECIFICATION

2.      REQUIREMENTS



2.1  Design and Construction
Product shall be of design, construction and physical dimensions as specified



2.2    Materials

2.2.1        Terminal Parts :

2.2.1.1  RJ Terminal : Phosphor Bronze , Thickness=0.30mm
Finish : ( a ) Contact Area : Gold Flash
       ( b ) Solder tail Area : 100m” min. Tin
       ( c ) Under plating : 50~100m” Nickel over all

2.2.1.2  Input Terminal : Brass , Thickness=0.35mm
Finish : 100
m” min. Tin over 50~100m” min. Nickel

2.2.1.3  Link Terminal : Brass , Thickness=0.30mm
Finish : 100
m” min. Tin over 50~100m” min. Nickel



2.2.2        Plastic Parts :

2.2.2.1  Housing : High temp. Thermoplastic, Black
Flame Class : UL94 V-0

2.2.2.2  Case : High temp. Thermoplastic, Black
Flame Class : UL94 V-0

2.2.2.3  Spacer : High temp. Thermoplastic, Black
Flame Class : UL94 V-0



2.2.3        Shell Parts :

2.2.3.1  Shell : Stainless, Thickness=0.20mm
Grounding Leg : Pre-soldering



2.3  Operating and Storage Temperature

2.3.1        Operating Temperature : -40 TO +85

2.3.2        Storage Temperature : -40 TO +85



2.4  RJ45 specifications:

2.4.1        Insulation Resistance: 500MΩMin

2.4.2        Dielectric Withstanding Voltage: 1000VAC Min



3.        ELECTRICAL CHARACTERISTICS

3.1.       SCHEMATIC



3.2.       Transmitter filter & Receiver filter
Type : Balance low pass 100Ω impedance
Insertion loss : 1~100 MHz –1.0dB MAX.
Return loss :  1~30 MHz –18dB MIN. load 100Ω
            30~60 MHz –16dB MIN. load 100Ω
            60~80 MHz –12dB MIN. load 100Ω



3.3 Common Mode Rejection
@ 1~100 MHz –30dB MIN.



3.4 Cross Talk
@ 1~100 MHz –30dB MIN

3.5 INDUCTANCE @ 100KHz, 0.1V, 8mA DC BIAS

Input(R1-R3), Input(R4-R6) : 350mH MIN.

3.6 HiPot TEST
Input(R1-R3) to Output(C1-C2) : 1500VAC, 60sec or 2250VDC, 60sec

Input(R4-R6) to Output(C3-C6) : 1500VAC, 60sec or 2250VDC, 60sec





Copyright © 2005-09 OBPower MAGNETICS
